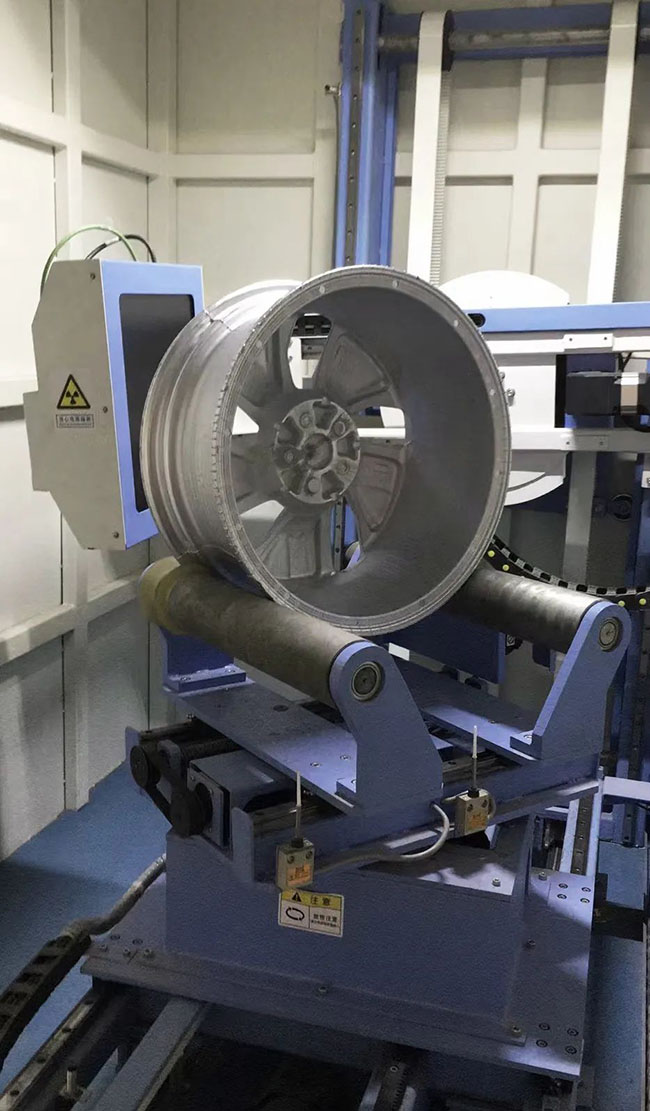

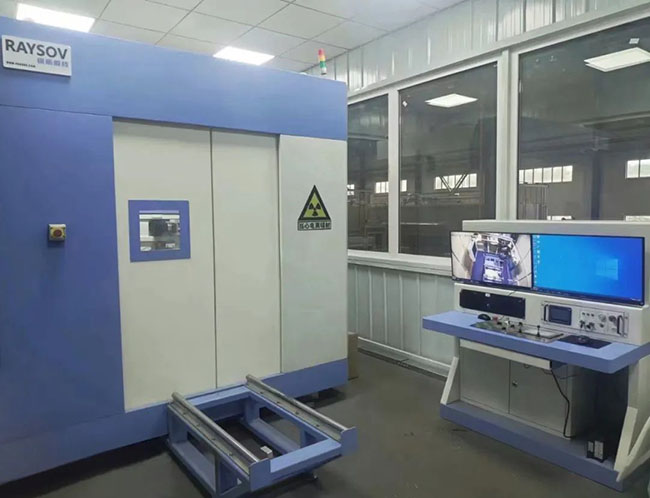

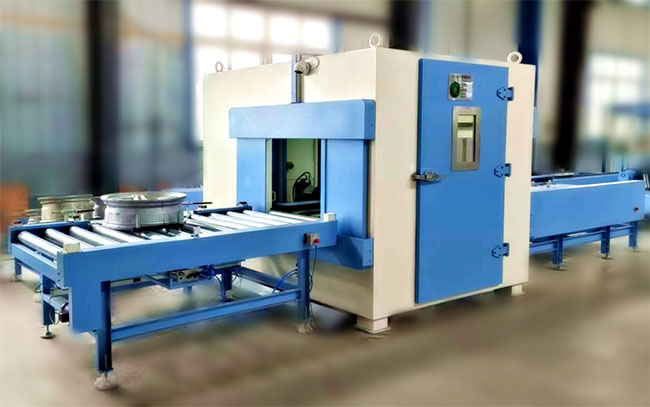

RAYSOV Instrument Z.X.RAY is a standardised and dedicated inspection system specially developed for quality control of aluminium alloy cast wheels. It is widely used in automobile, motorbike, electric vehicle and other fields. The system is divided into two categories: W-S off-line sampling type and W-I in-line type, which provides wheel manufacturers with efficient and reliable inspection means to ensure stable and reliable product quality. Technical characteristics
Wide range of applications: sizes covering 12-32", providing efficient and accurate inspection solutions.

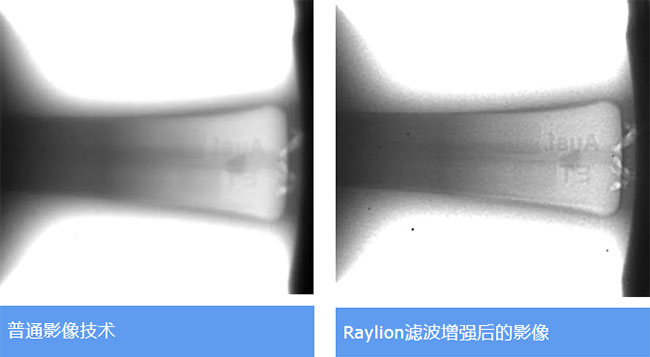

High-precision imaging: metal-ceramic tube X-ray machine with clear images and strong defect recognition ability.
CNC Inspection: With CNC inspection function to enhance accuracy and efficiency.

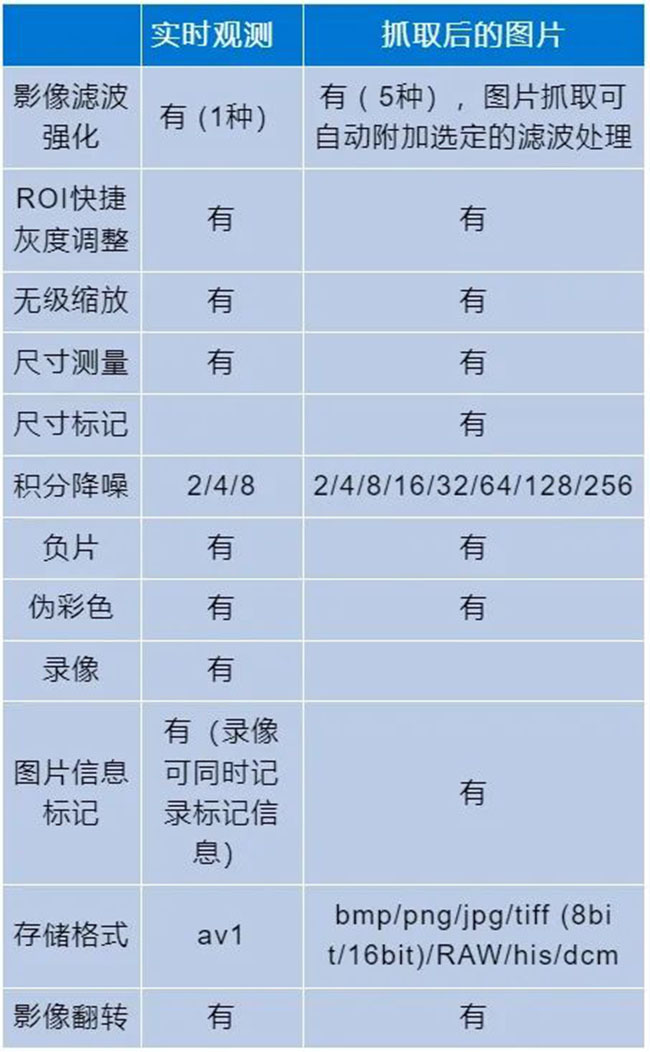

Visual operation: real-time image display, full monitoring, convenient operation.
Modular design: easy to maintain and upgrade.
Multi-axis motion: Adapt to different inspection needs.
Safety: Radiation protection design ensures safe operation.

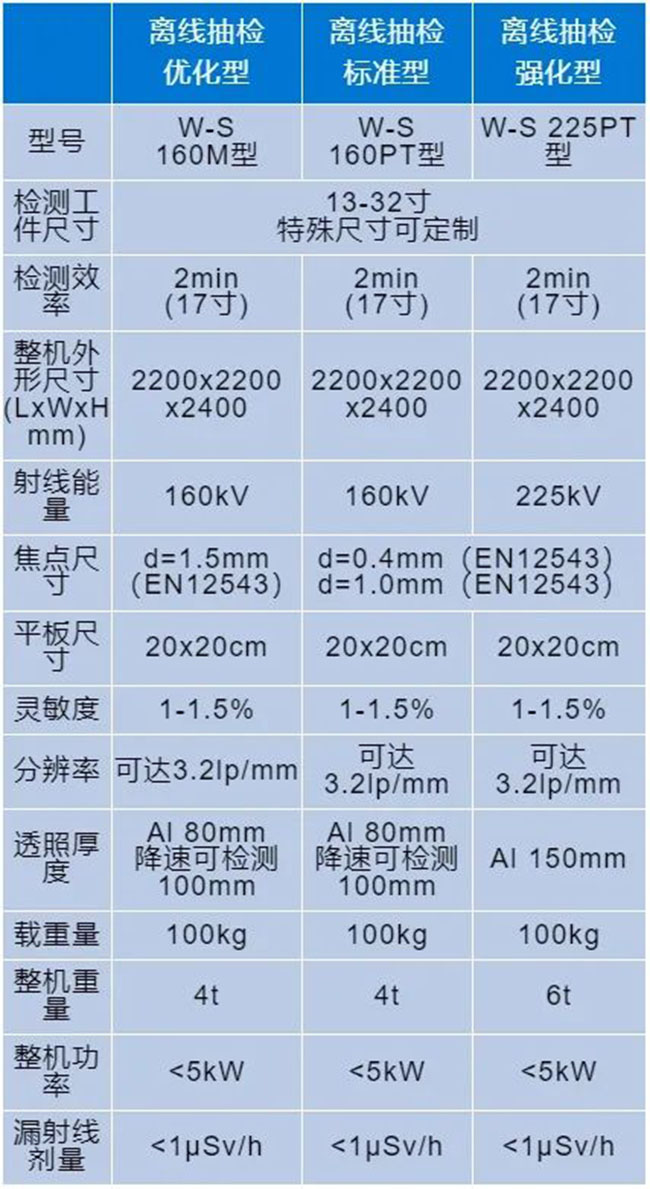

Outline drawing of the device Schematic diagram of the test Selection table Technical characteristics
Excellent performance: 23 new models have been upgraded to improve smoothness of movement, reliability and cost-effectiveness.
Wide applicability: Wheel size inspection range from 12-32" to meet various needs.
User-friendly design: Height-adjustable display provides operators with a comfortable viewing experience.
Aesthetics and Practicality: Aluminium pattern plate flooring, both aesthetics and durability.
Double guarantee: Double limit parallel design ensures stable operation of the equipment and avoids damage.
Durable: The motion mechanism is equipped with dust and chip prevention devices to prolong the service life.
Accurate Measurement: Accurate measurement, calculation and marking of defects to ensure product quality.

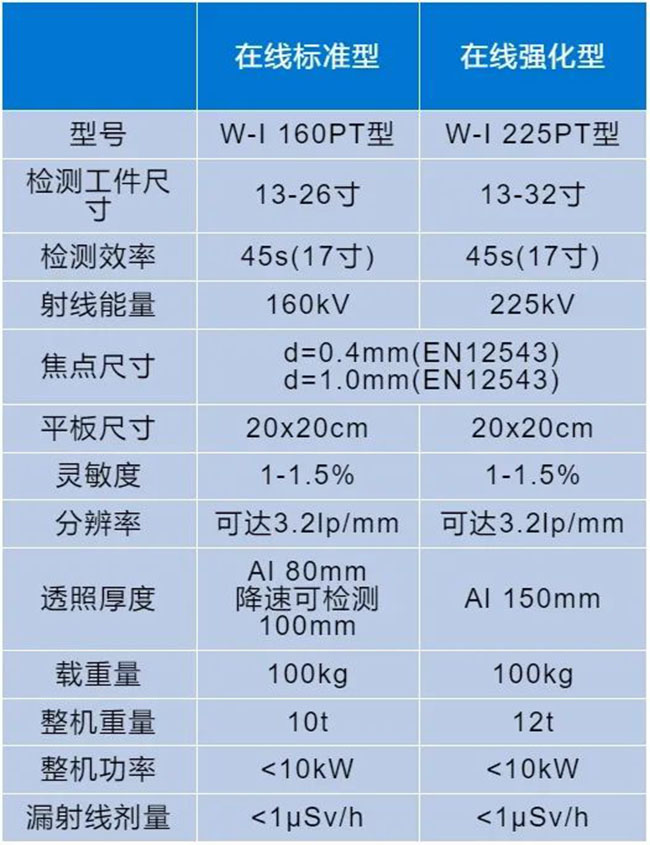

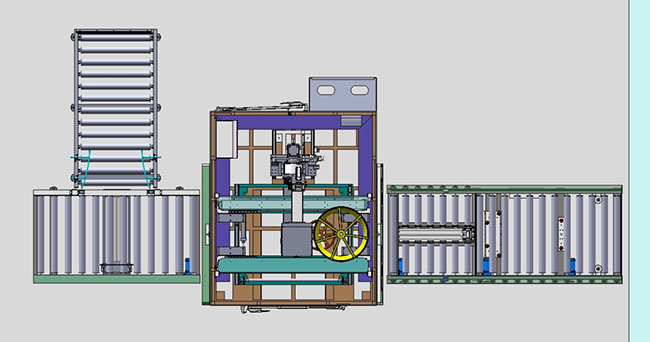

Outline drawing of the device Internal structure diagram Selection table RAYSOV Instrument W-Series wheel X-ray inspection system has become a key inspection tool in the wheel manufacturing industry due to its high accuracy, high efficiency and safety features. In the future, with the development of technology and market expansion, the W series system will show its value in more fields and help the automotive manufacturing industry to move forward safely.
