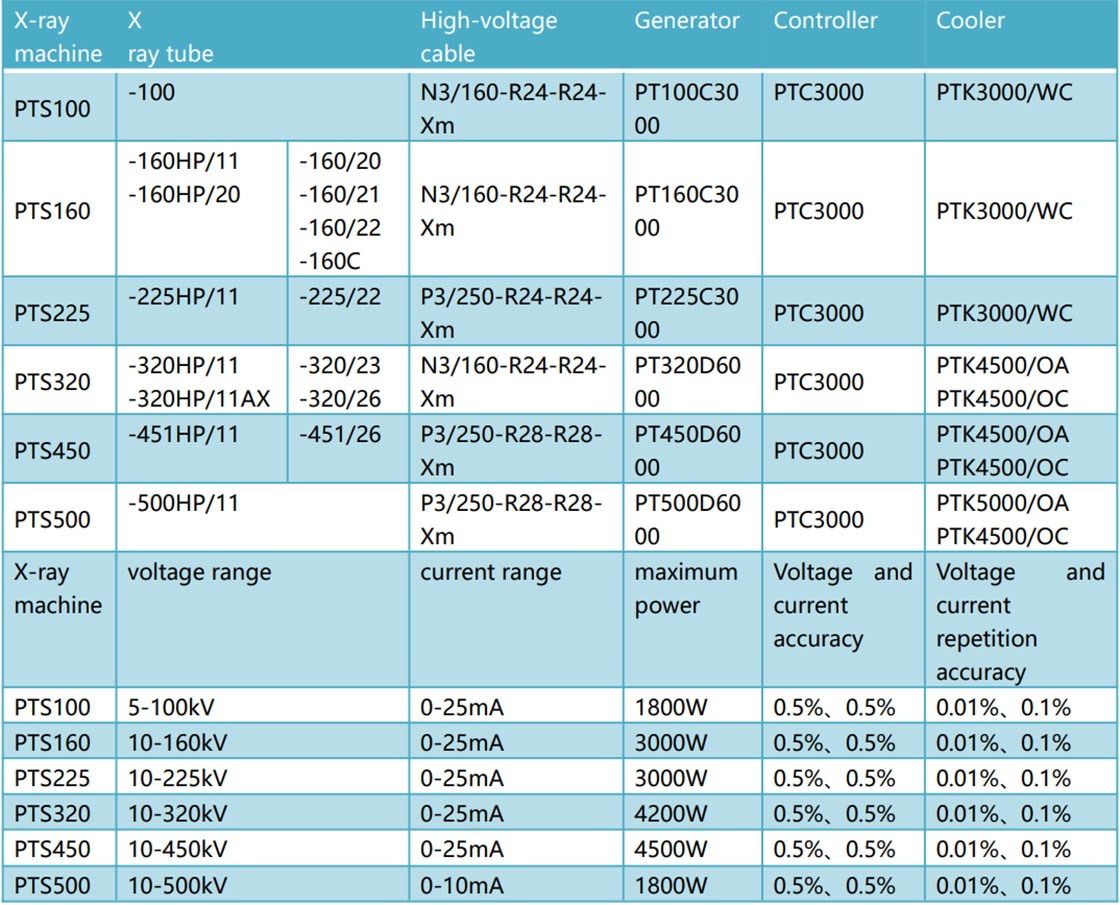

PTS series High-frequency high-voltage X-ray Machine PT series
? Industrial NDT (non-destructive testing) field popular high frequency X-ray machine!！
? In the field of industrial NDT (non-destructive testing), the annual installed capacity in national market exceeds 150 sets！
? Spot reserve in all regions in China, quick maintenance, can ensure that user-site downtime not exceed 72 hours！
? High versatility and modularity, preset a variety of X-ray tube programs, one key adjustment upgrade！
? High voltage oil insulation facilitates maintenance！
RAYSOV brand manufacturing standards, PTS series of high frequency X-ray machine selected high quality ceramic X-ray tube matching PT high voltage generator and cooler, provide with up to 4500W continuous operation X-ray machine. It focuses on providing stable X-ray sources for industrial inspection (non-destructive testing), industrial CT, scientific research and other applications.
PTS X-ray machine modulator adopts high-frequency double closed-loop control, and no need to add an auxiliary voltage regulator. It can overcome the interference and fluctuation of the external network voltage through its own rectifier generator, so that the imaging is stable. It is not interfered by the fluctuation of the generator in the field, and the stability of the radiation output dose is fully guaranteed. The bipolar generator is controlled by two modulators, which fully overcomes the problem of voltage imbalance between two electrodes caused by single modulator and prolongs the service life of X-ray tube. The protection function of the whole machine is powerful, with kV, mA follow protection, for any kV, mA value can be set 1%-5% protection value, slight spark discharge can reach microsecond protection. Technical indicators
A. Intelligent control
? Touch screen operation, can directly input parameters and make menu
? selections Operation language: Chinese/English optional
? Tube type selection: preset famous brand X-ray tube types, can be selected in the system parameter menu
? Power curve: According to the power curve of different X-ray tubes, the program can be preset to the greatest extent.
? kV control: Accuracy: 0.25%; kV step 0.1kV
? Stability: After 1 hour warm-up, the change does not exceed 0.25% within 8 hours.
? mA control: accuracy: 0.25%; mA step 0.1mA
B. Use environment
? Power supply：220V AC ±10%
? Operating temperature：0-40℃
? Storage temperature：-25℃-+70℃
C. Safety
? Interlock protection interface reserved
? Real-time monitoring of various indicators, automatic fault alarm
? Configure the ray work indicator, which flashes when X-ray is turned on
? Configure the ray work indicator, which flashes when X-ray is turned on

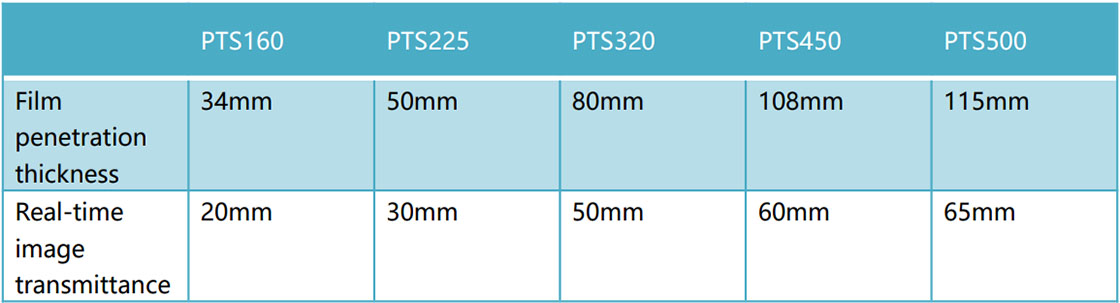

D. Penetration thickness Film Penetration Conditions：FFD700mm，Pb-screen 0.02mm， density 2.0,100mA·min；
Real-time Penetration conditions：FDD=800mm，FOD=500mm
Features of the whole machine：
? Strict aging test before leaving the factory to fully guarantee stability
? Anti-discharge shock protection, fully improve product reliability and durability
? Easy installation, high-voltage cable flange connection, other cables and cooling pipelines are all quick connections
? High-frequency technology is used for stronger penetration and more stable radiation dose

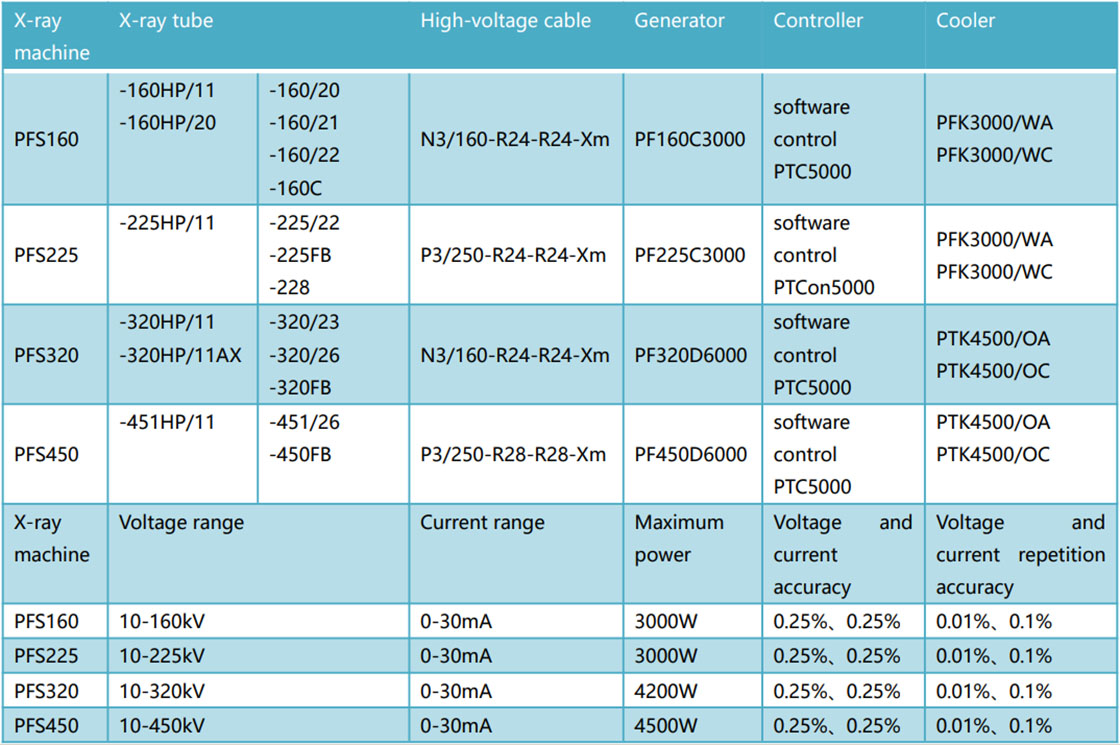

PFS series high-frequency high-voltage X-ray machine PF series HFHV Generator ? PF series is an upgrade of PT series, with better integration, providing more competitive X-ray sources and high-voltage generator for industrial applications such as sorting, security inspection, irradiation and thickness measurement
? Compact, easy to integrate the whole X-ray machine
? Integrated, digital design, the use of higher grade AD, DA chips, perfect monitoring of internal signals, to ensure higher stability, can be long-term non-stop work
? The control accuracy of kV and mA is improved to less than 0.1%, and higher precision can also be customized according to demand

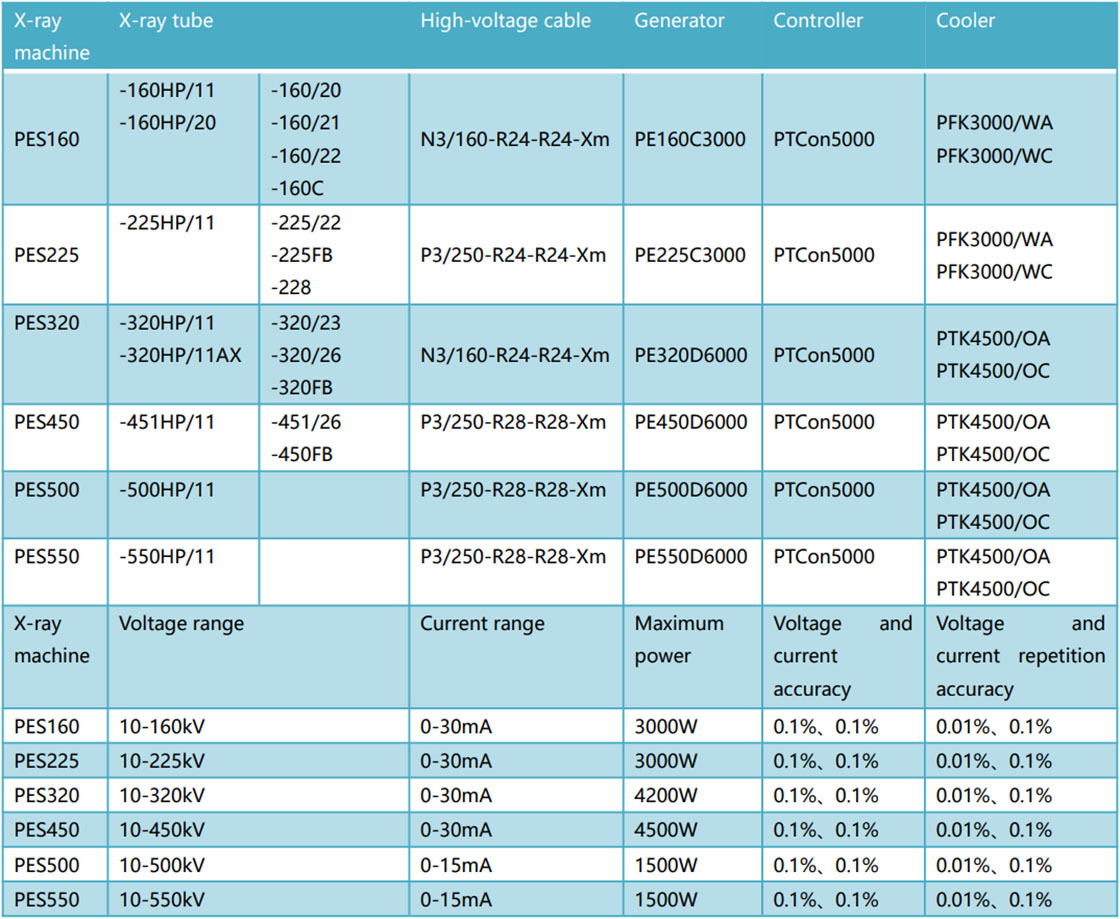

? Improve the sensitivity of discharge protection, better protect the ray tube and high voltage loop PES series High frequency high-voltage X-ray machine PE series
? PE generator has higher protection sensitivity and light buffer protection, more suitable for X-ray tube training and other easy to spark discharge conditions
? PES X-ray machine adopts a more integrated design, suitable for aerospace, industrial CT and other high-end applications
? More compact, bipolar generators can be stacked to save space
? Match 500kV, 550kV, 600kV and other higher voltage X-ray tubes

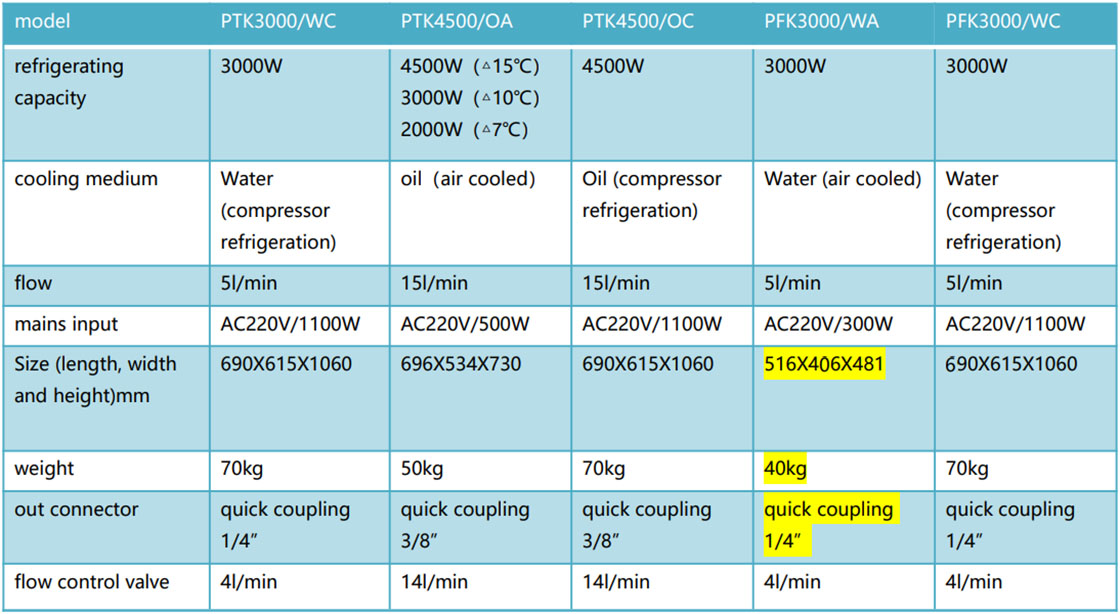

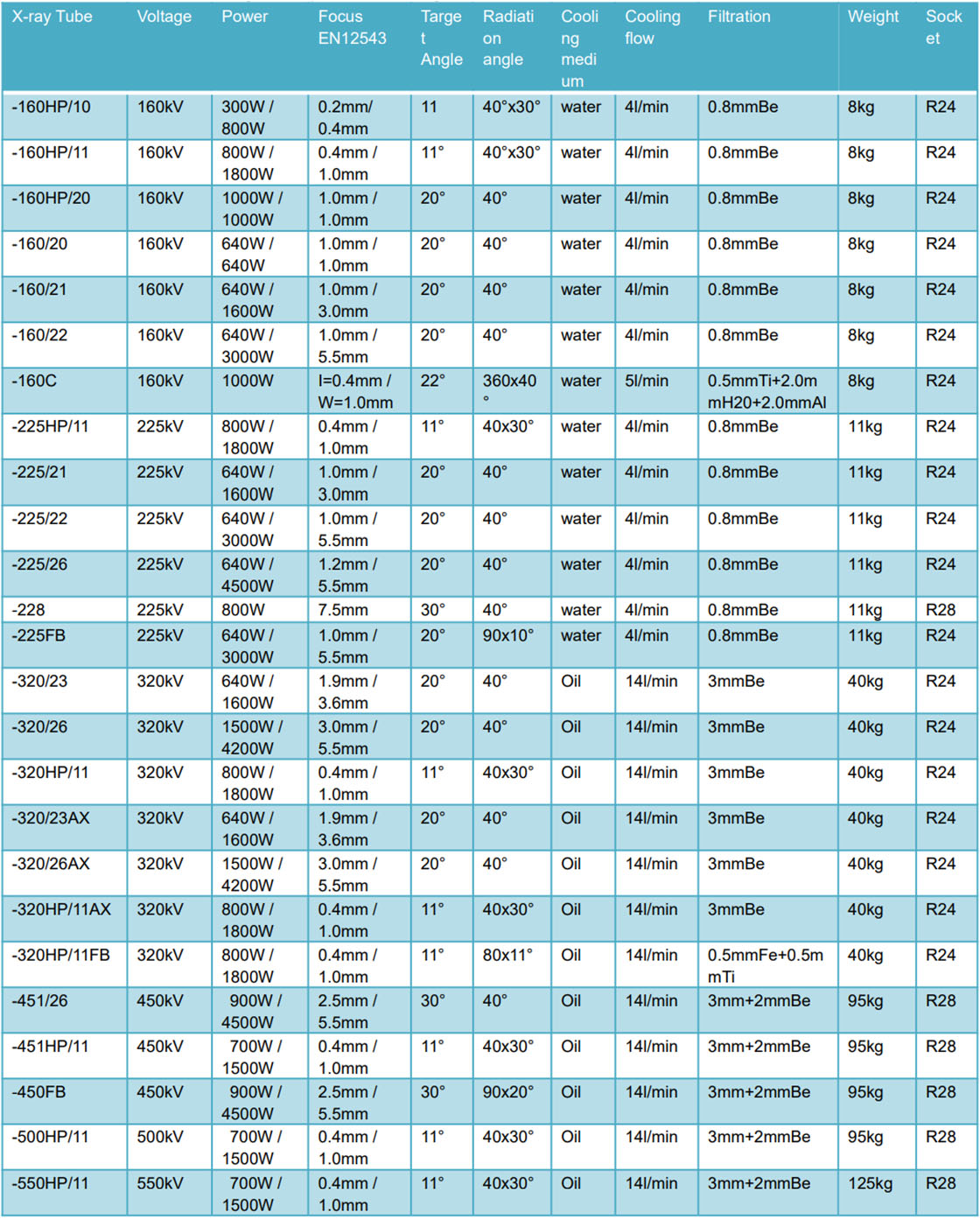

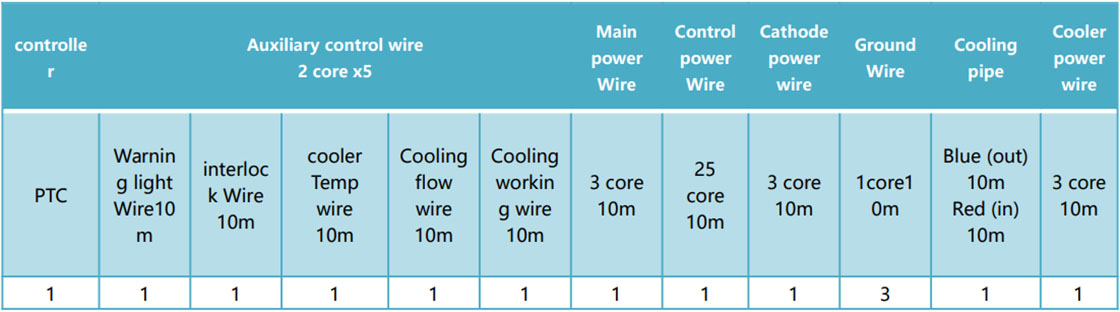

system configuration X ray tubes: All X ray tube operating procedures in this table have been embedded in the controller. You can select the corresponding tube type when using. Cooler： Controller and low voltage cable:
